JSC Ingenium - Photo
JSC Ingenium Virtualized and Cloud-Native Mobile Core provide a full suite of 3GPP standards compliance network functions
JSC Ingenium Core Network is specifically designed to provide flexibility and cost efficiencies that a Communication service provider needed to quickly set up their network and cope with the growing need for mobile traffic.

Advantages of JSC Ingenium Mobile Core

High Scalability

Each application’s performance and capability can be adjusted to satisfy changes in demand and cater to growing traffic demands.

Faster Time To Market

High programmability and configurability of the solution offer increased time to market speed by minimizing the time of creating new services, modification, or inclusion of new features.

High Availability

The solution uses redundancy deployment and Geo-redundancy deployment to reduce the possibility of service unavailability caused by a single point of failure.

Cost-Effective

Significant cost savings and very well optimized TCO, since the future proof Core solution can be deployed anywhere from commercially off-the-shelf hardware to any public or private cloud, leveraging economies of scale.

Various Deployment Models

Offering flexibility in deployment to meet multiple business cases ranging from multi-tenancy, distributed geographical setup, to Hybrid cloud model and beyond.

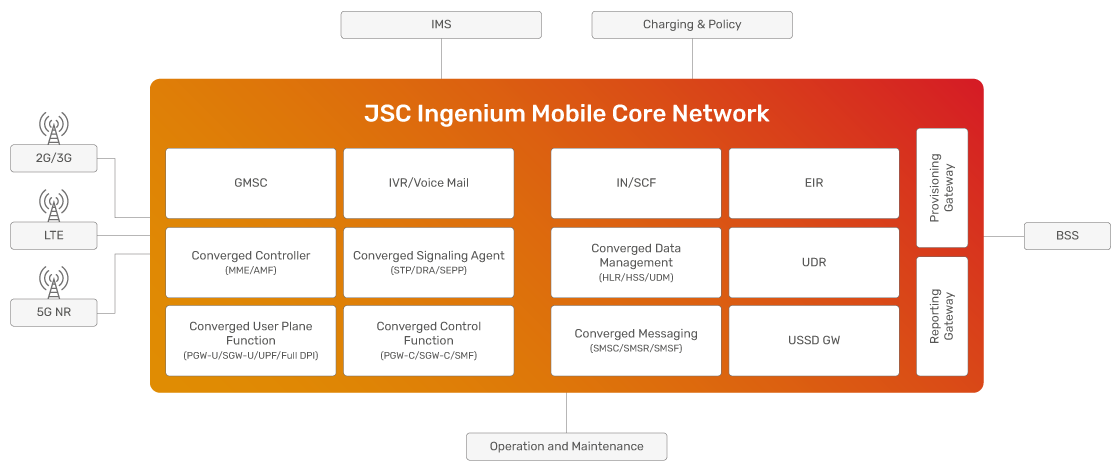

Solution Architecture

JSC Ingenium Mobile Core provides a full-stack, fully converged functions with full separation of the control plane and user plane, which allows for flexible and optimized deployment models:
JSC Ingenium - Technology: Mobile Core Network

Converged Data Management

JSC Ingenium Converged Data Management provides powerful data convergence as part of HLR, HSS, IMS-HSS, UDM, AAA and AUSF functions.

Main functions and features:

  • Multi-network/multi-country support.
  • Multi-SIM/Multi-IMSI/multi-MSISDN.
  • Supports WiFi.
  • Speed up and improve service provisioning.
  • Fully programmable.
  • Linear scalability from 10,000 to millions of subscribers.
  • Authentication (Millenage, GSM Millenage, 5G-AKA, EAP-AKA) / EIR / SDP.

Converged Control Plane Functions

Converged Control Plane Function works as SGW-C, and PGW-C used on traditional 2G, 3G, and 4G as well as 5GC SMF. It is responsible to maintain the session for multiple PDNs and to manage the bearer tunnel with mobile user and mediates the Charging and Policy provisioning with respective function for bearer.

Main functions and features:

  • Application of Policy & Charging functions.
  • CDR Management.
  • Session Management.
  • Security Management.
  • Roaming Control.

Converged Controller Functions

JSC Ingenium Converged Controller function is highly scalable and providing standard-based EPC MME and 5GC AMF security and session management functions.

Main functions and features:

  • Authentication function.
  • Mobility management.
  • User context information management.

Converged User Plane Functions

The Converged User Plane application will act as the packet processing controller. It handles the user session requests from Control Plane Functions. It establishes a unified user plane by combining user plane functions of 5G UPF with SGW-U and PGW-U functions of LTE and legacy network.

Main functions and features:

  • Ready for conventional 2G,3G,4G and 5G environments.
  • Flexible bidirectional tunneling between SGSN/SGW and data networks.
  • Supports distributed deployment.
  • Highly cost effectiveness even at very low subscriber densities.
  • Ready for online and offline charging and billing.
  • Application of quality of service [QoS] by service and subscriber.
  • Configuration via web services.
  • DPI (Deep Packet Inspection) functions for distributing differentiated data services.

Converged Signaling Agent

Converged Signaling Agent of JSC Ingenium converges signaling, simplifying the network structure and hides the network topology and functions to enhance network border security. It can function as the STP in SS7 network, DRA for diameter routing and 5GC SEPP by supporting HTTP/2.

Main functions and features:

  • Signaling service processing.
  • Forwards Signaling.
  • Translates global titles (GTs).
  • Signaling charging for SS7 signaling.
  • Connects to network functions with high availability.
  • Signaling Firewall gateway.
  • Roaming border gateway.

Converged Messaging Functions

SMSC technical specifications:

  • Links to external SMEs.
  • Standards supported:
    • MTP ITU-T Q.701 – 704 + Q.707 / ANSI T1.113
    • SIGTRAN (M2PA M3UA)
    • SCCP ITU-T Q.711 to Q.714 (1993) / ANSI T1 (1992) / BTNR145
    • TCAP ITU-T Q.771 – Q.774 / ANSI T1.114-1996
    • MAP 3GPP 29.002 Rel 3
    • SMS 3GPP 23.040)
    • SMPP 3.4/UCP/CIMD2
    • Diameter.

General characteristics:

  • High availability.
  • Advanced routing mechanisms.
  • Direct Delivery and Store & Forward modes supported.
  • Integrated support for Home Routing (HLR emulation).
  • Custom settings for different categories of users: by origin, destination, etc.
  • Advanced logic application programming.
  • Interconnection with Short Message Entities via IP protocols.
  • Integration with IMS Network via SIP.
  • Based on highly flexible, configurable and scalable.
  • Carrier Grade technology, giving operators the ability to control high SMS transmission rates.
  • Self-provisioned.
  • Support for MNP.
  • Supports Camel.
  • Intelligent routing of SMS for optimizing network traffic.
  • Specific optimization for media events.
  • SMS Value Added Services: SMS forwarding, off-loading, VPN, signature…
  • HLR Optimization.
  • Home Routing.

SMSR technical specifications:

  • Home routing. Grooming. Anti spam filtering.
  • Standards supported:
    • MTP ITU-T Q.701 – 704 + Q.707 / ANSI T1.113
    • SIGTRAN (M2PA M3UA)
    • SCCP ITU-T Q.711 to Q.714 (1993) / ANSI T1 (1992) / BTNR145
    • TCAP ITU-T Q.771 – Q.774 / ANSI T1.114-1996
    • MAP 3GPP 29.002 Rel 3
    • XML-RPC / SOAP
    • Diameter.

General characteristics:

  • High availability.
  • Development created on JSC’s STP.
  • Complete solution for Home Routing.
  • Programmable.
  • Integration with IMS Network via SIP.
  • Intelligent routing based on:
    • Originating SMSC.
    • Originating subscriber.
    • Destination subscriber.
    • Business criteria.
Core Network Functions
Enter your details and we will contact you straight away:


    EIR

    • Welcome message application.
    • 4G Integration (SIP enhancement).

    General characteristics:

    • Full control of set of terminals connected, authorizing and recording changes of terminals.
    • Ability to determine a subscriber’s terminal type, enabling the creation of personalized services.
    • Creation of welcome services on roaming networks.
    • Lawful Interception.
    • Ability to integrate with external databases.
    • Ability to provide stored information by multiple access mechanisms (Web Services, SIP enrichment, etc.).
    • Ability to create powerful anti-fraud mechanisms.
    • Integration with other Network elements: SMSC, USSD GW,..
    • Management of multiple white and black lists for applying differentiated policies.

    Technical specifications:

    • Full EIR implementation.
    • Blacklists, grey multilists.
    • SIP Enrichment.
    • SIP Support.
    • CDR and trace generation.
    • SNMP Interface.
    • Standards supported.
      • MTP / SIGTRAN
      • SCCP ITU-T / ANSI / BTNR145
      • TCAP ITU-T / ANSI
      • INAP CS1, CS2 Propietary extension
      • CAMEL phase 1-4
      • SIP
      • Diameter Policing, Accounting and Charging
      • MAP 3GPP

    USSD Gateway

    • Internal application engine; SCE (Service Creation Environment).
    • Easy integration into third party platforms (Web Services).
    • Network-originated USSD.

    General characteristics:

    • High availability.
    • Support for enriched dialogues with multiple interactions with the subscriber.
    • Support for network-initiated dialogues.
    • HLR Emulation.
    • SS7 routing (STP Integrated).
    • Programmable.
    • Interconnectable with external entities via IP protocols.
    • Integration with IMS Network via SIP.

    USSD Technical specifications:

    • Standards supported.
      • MTP ITU-T Q.701 – 704 + Q.707 / ANSI T1.113
      • SIGTRAN (M2PA M3UA)
      • SCCP ITU-T Q.711 to Q.714 (1993) / ANSI T1 (1992) / BTNR145
      • TCAP ITU-T Q.771 – Q.774 / ANSI T1.114-1996
      • MAP (stage 3) (USSD related, including NO)
      • SMPP 3.4/UCP/CIMD2
      • XML-RPC/SOAP
      • Diameter.

    IVR & Voice Mail

    • High availability.
    • 16 E1 Carrier Grade capacities.
    • VMS applications:
      • Message deposit.
      • Message listening.
      • Customization of mailbox.
      • Re-call from mailbox.
    • Supported options:
      • Message deposit.
      • Message retrieval.
      • General:
        • Multi-language.
        • Blacklists.

    Voice Mail Technical specifications:

    • Standards supported.
      • MTP ITU-T Q.701 – 704 + Q.707 / ANSI T1.113
      • SIGTRAN (M2PA M3UA)
      • ISDN
      • ISUP
      • SIP
